DTG 6090 Textile Printer

DTG4060 Textile Printer

DTG 6090 Printer

  • Product Features: Direct to Garment Flatbed Printer
  • Print Size: 600mm x 900mm
  • Print Height: 50mm
  • DPI: 720*1440
  • Print Head: Epson DX5 printer head (8 nozzles)

The DTG6090 is a high-speed and durable double-platen or multiple-platen garment printer with a maximum size of 600mm x 900mm. It produces the highest quality images on many types of garments; especially 100% cotton and high cotton blend t-shirts.

The DTG6090 outputs more garments in less time without sacrificing print quality. It sets new standards for speed and versatility with interchangeable platens, allowing four smaller images, two standard images or one over-sized image. You can also print on dark t-shirts in a single pass with white ink and colour ink.

Go-to-Market Concepts



Cloths Platen Configuration

  • 4 small platen: 4 * 408.9mm x 236.5mm
  • 2 large platen: 2 * 510mm x 375mm
  • 1 large platen & 1 small platen: 2 * 408.9mm x 236.5mm + 1 * 510mm x 375mm

CMYK Textile Ink

  • Vivid colour, high colour concentration, clear-cut dot.
  • Excellent adaptability, excellent on-machine printing quality

PhotoPrint Software

  • White Ink options – full background, under colour, spot colour
  • Allows you to add your own ICC colour profiles to the RIP
  • Repeat function allows you to copy artwork for multiple product prints.

Canvas Prints

Printed on 100% Cotton White T-shirt

Canvas Prints

Printed on 100% Cotton Black T-shirt

Canvas Prints

Pillow Cover

DTG 6090 Textile Printer
DTG 6090 Textile Printer
Materials to PrintLight colour & dark colour textile, above 80% cotton
Printing MethodDrop-on-demand Piezo Electric Inkjet
Printing DirectionSmart Bi-directional Printing Mode
Printing SpeedAbout 180seconds for 720*720dpi, 400mm*600mm size
Print ResolutionStandard Dpi: 720*1440dpi
Low Dpi: 720*720dpi
Max. Print Format24”*41” (60x90cm)
Max. Print Gap5cm
Power Requirement50/60HZ 220V(±10%) < 5A
Print QualityTrue Photographic Quality
Environment20 ~ 28 ℃ HR40-60%
Printer HeadSingle Printer Head
RIP SoftwareSAi PhotoPrint DX or DX Plus
Operation SystemMicrosoft Windows 98 / 2000/XP/Win7/Win8
InterfaceUSB Port
Ink Typetextile ink
Ink SystemCISS Built Inside With Ink Bottle
Ink Supply1000 ml/Bottle
Height AdjustmentAutomatic with Sensor.
Driving Power110 V/ 220 V.
Power Consumption380W
Ink Consumption30ml / SQM.
Working Environment20-28 degrees.
PackingWooden Case
Machine Net Weight145Kg
Machine Dimension140 * 130 *55cm
Media Feeding SystemManual

Golf Ball Tray

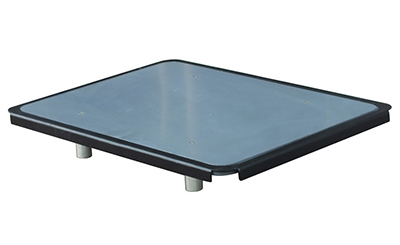

Clothing Tray

Golf Ball Tray

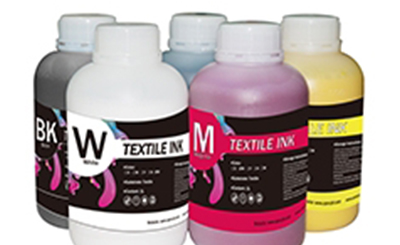

Textile Ink

Golf Ball Tray

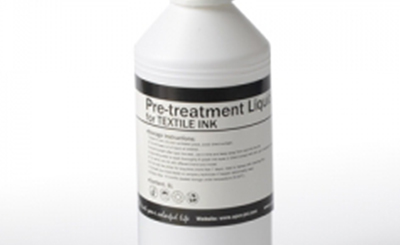

Pre Treatment Solution

Golf Ball Tray

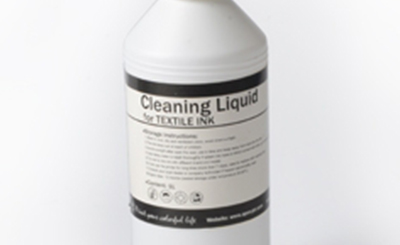

Textile Cleaning Liquid

How to Print T-Shirt Easy Using Apex Digital Garment Printer DTG6090

Watch Video

How to Print T-shirt In Different Platens with Apex DTG Printer

Watch Video

Apex DTG6090 Printing on Black Textile

Watch Video
